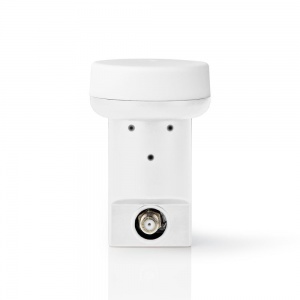

Nedis SLNB10SWT LNB Single Output Connection 1x F Connector
Product Information:
Mount this Nedis single LNB on installations that require superior signal strength and quality. It reduces the noise figure. The final noise figure ranges from 0.2 dB to 0.9 dB.
This single LNB is suitable for connecting 1 satellite receiver to your satellite dish.
Product Specification:
- Image rejection (min.) 40 dB
- Satellite accessory type LNB
- Low band switching 0 kHz
- Polarity switching voltage vertical DC 11,0 - 14,0 V
- Polarity switching voltage horizontal DC 16,0 - 20,0 V
- Input frequency range low band 10.7-11.7 GHz
- Input frequency range high band 11.7-12.75 GHz
- Operating temperature range -40-70 °C
- High band switching 22 kHz
- Current consumption 0.08 A
- Cross polarization 18 dB
- Local oscillator frequency phase noise -80 dB c/Hz @ 10 kHz (max.)
- Conversion gain 53-65 dB
- Output connection 1x F-Connector
- LNB type Single
- Noise figure range 0.90 dB
- Output spurious -60 dB
- Output frequency range high band 1.100-2.150 GHz
- Gain flatness 26 MHz bandwidth ± 0,5 dB

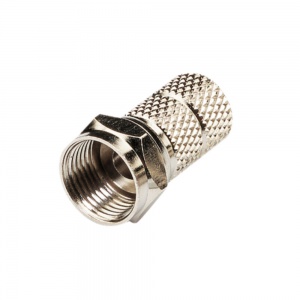

AV Link 770.152 F Type Connector
Product Information:
The AV Link 770.152 F Type Connector is a Twist on F-type plug for RG6 and 100 type (6.5mm to 7mmØ) cable.

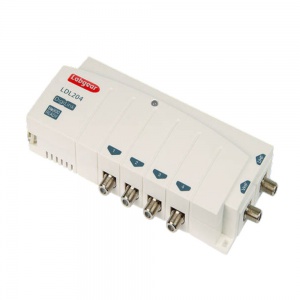

Labgear LDL204 4 Way Diglink Amplifier
Product Information:The Labgear LDL204 4 Way Diglink Amplifier is ideal for use in digital satellite home installations, where the output from the receiver can be distributed to several rooms over coax cable with the capability for full remote control of the digibox in these rooms. The addition of DigiLink infra red extenders in the relevant rooms completes the installation. Please note extra remote controls may be required and rooms without a Digilink installed will receive the satellite signal but wont have the capability to control the receiver. Can also be used to distribute TV (Freeview) signals directly from a TV aerial.
Product Specification:
- Separate inputs for UHF 470-4790Mhz and FM/DAB 88-230MHz aerial signals
- Built in filter to prevent interference from LTE800 4G transmitters
- Gain per port 8dB
- Noise figure <3.5dB
- All ports IR enabled - 9V 15mA short circuit protected
- Suitable for distribution of RF2 satellite signals or Freeview TV signals direct from an aerial
- Also suitable for distribution satellite signals from I/O port when used with MRX600 converter
- Built in switch mode 220-240V~50Hz power supply.
- All ports IR enabled 9V 15mA short circuit protected
- Built-in Power supply 220-240V~50Hz at <3W.
- Operating frequency UHF 470 - 790MHz
- Return path frequency range 5-15MHz
- FM/DAB frequency range 88-230MHz
- UHF/FM/DAB gain per port 13dB
- Return path gain "-4dB"
- Inputs 2
- Outputs 4
- Max output level (IMA3-60dB) 102dBuv
- Noise figure <3.5dB
- Return loss input/output 10dB/10dB
- Isolation out/out 20dB
- Connectors F-type
MegaSat 0401074 HD-Profi Quad LNB
Product Information:
The HD-LNBs promise best quality at an attractive price. Also here, the F-connectors for better conductivity gold-plated, in order to ensure the best possible picture on your TV. The reception of HD, 3D or 4K programs is with these LNBs is guaranteed.
The LNB is suitable for the reception of signals from a satellite for up to four receiver. The retractable weather protection protects the F-socket before snow and rain. By a very low noise level of only 0.1 dB is an excellent picture and sound quality is guaranteed.
Product Specification:
- Suitable for operation of up to four receivers directly at the LNB
- Long life thanks to the heat and cold-resistant design.
- The retractable weather protection protects the F-socket before snow and rain
- Excellent picture and sound quality with a very low noise level of only 0.1Db
- Participants 4
- LNB feed size 40mm
- Noise factor 0.1dB
- Connector F socket
- Features gold-plated terminals, weatherproof
- Colour White
- Product type Quad LNB

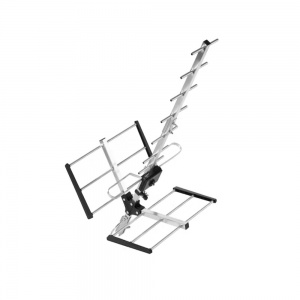

One For All Amplified Outdoor Aerial SV9354
Product Information:
Guaranteed Durability
Designed to withstand the most heavy weather conditions, this performance antenna is suitable to be used outdoors. It's all weather proof up to IP55 level, 100% water proof.
Interference Free
This antenna has a unique 3G/4G block-filter to block all 3G and 4G mobile phone signals, to ensure the best possible reception, now and in the future.
Easy Instalation
It takes only 3 simple steps to assemble this antenna, the package includes cables, connectors and all fixing materials for a quick and easy setup.
Product Features:
Rotatable
All elements are already pre mounted
PCB balun optimized for digital reception
HD compatible, for crystal clear performance
Amplification for crystal clear picture and sound reproduction
Product Specifications:
Brand: One For All
Cord Length: 10 m
Frequency Range: UHF
Maximum Signal Range: 50 km
Noise Level: 12 dB
Power Source: Mains
Signal Coverage: 24 dB

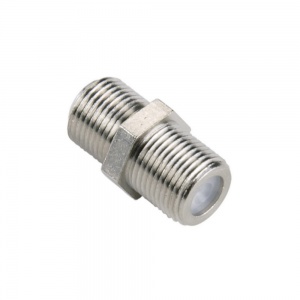

AV Link 770.751 Coupler F Female to F Female
Product Information:
The AV Link 770.751 Coupler F Female to F Female is A back-to-back coupler to join 2 x F plugs together. Ideal for RF aerial and multimedia connections.

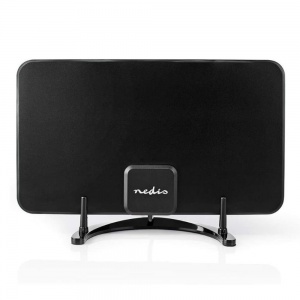

Nedis ANIR2503BK Indoor HDTV Antenna
Product Information:
The indoor Nedis ANIR2503BK DVB-T/T2 antenna ensures a stable reception of free-to-air channels, pay television (if you’re subscribed) and FM radio signals. The antenna features a compact and stylish design that blends in with any interior, without being too distracting.
Product Specification:
- Colour Black
- Material ABS
- Impedance 75 Ohm
- Power source type Mains Powered
- Power plug Type C (CEE 7/16)
- Indoor / outdoor For Indoor
- Power adapter cable length 1.50 m
- Input voltage 220 - 240 VAC
- Signal type
- FM
- UHF
- VHF
- VHF frequency range 170-230 MHz
- LTE filter LTE800
- UHF frequency range 470-790 MHz
- Connector type (Coax) IEC Male
- DAB+ supported Yes
- FM frequency range 87.5-108.5 MHz
- Cable length 1.60 m
- Antenna type Active
- Reception range 0-25 km
- FM gain 28 dB
- Height 280.0 mm
- Gain control 0-18 dB
- UHF gain 36 dB
- Vertical beam width 60 °
- VHF gain 36 dB
- Horizontal beam width 76 °
- Weight 552 g
- Depth 110.0 mm
- Gain 36 dB
- Width 225.0 mm

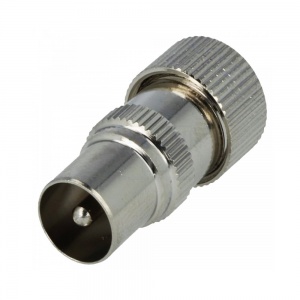

AV Link 765.539 Metal Coaxial Plug Male
Product Information:
The AV Link 765.539 Metal Coaxial Plug Male is a High quality nickel plated brass coaxial plug
Total Control SV1290 UHF Outdoor TV Aerial
Don't let the Irish weather hinder your viewing experience. The Total Control SV1290 is fully waterproof, allowing you to curl up on the sofa and watch your favourite shows even in the most adverse weather conditions.
4G filter
With the SV1290, you don't need to choose between watching great quality TV and browsing on your smartphone or tablet. The handily built-in 4G filter prevents your device from interfering with your TV signal, meaning you get a consistently great, uninterrupted viewing experience.
30 miles range
The SV1290 is ideal if you happen to live in a weak signal area. With a guaranteed reception of up to 30 miles from your nearest transmitter, you should notice an immediate boost in quality after installation.
Easy installation
The SV1290 aerial package comes equipped with cables, connectors and all fixing materials, making sure you have all the necessary tools to complete quick and simple installation.
- Brand: TOTAL CONTROL
- Suitable for: Freeview
- Frequency range: - UHF ; - VHF
- Maximum signal range: 30 miles / 48.3 km
- Type: Outdoor
- Box contents: - Total Control SV1290 UHF Outdoor TV Aerial; - Serrated clipper; - M6 wingnut; - Screws; -
- Plastic waterproof caps; - F connector
- Colour: - Silver ; - Black
- Manufacturer’s guarantee: 1 year
- Weight: 1.16 kg
- Dimensions: 68 x 103 x 50 mm (H x W x D)
- Other features: - 4G filter; - Easy installation; - Waterproof
- Cable length: 10 m
- Signal booster: Yes
- Height (mm): 68
- Width (mm): 103
- Depth (mm): 50

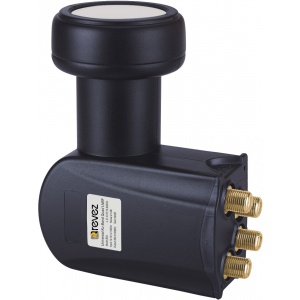

Revez BS4 Premium Quad LNB 0.1dB, HD, 3D, 4K Support
Revez BS4 Premium Quad LNB 0.1dB, HD, 3D, 4K Support
- Brand: Revez
- Model: BS4
- Series: Black Series
- Colour: Black
- Outputs: 4
- Connectors: Gold Plated
- Neck Diameter: 40mm
- Noise Figure: 0.1dB
- PLL Crystal
- Input: 10.70-12.75GHz
- Output: 950-2150MHz
- l.o: 9.75/10.6GHz
- Gain: 60dB

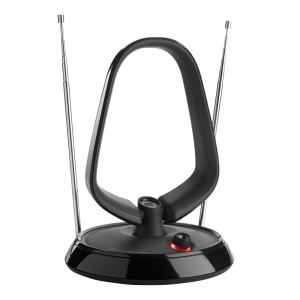

One For All SV9143 Amplified Indoor TV Aerial
Product Information:Enjoy perfect reception of digital television
The One For All SV9143 Amplified Indoor TV Aerial is a Fully tiltable ariel optimized for reception of HD digital TV signals. For best performance we recommend to use this ariel within a range of 15 km from your nearest transmitter.
Fully adjustable for clear reception
For perfect reception of DVB-T television you can tilt or turn the fully adjustable loop and optimize the telescopic ariels
Interference free
This ariel has a unique 3G/4G block-filter to block all 3G and 4G mobile phone signals, to ensure the best possible reception, now and in the future.
Product Specification:
- Type Indoor Aerial
- Digital Quality HD Ready
- Distance to Transmitter (km) 0 - 15 km
- DVB-T / DVB-T2 yes
- Power indicator (LED) yes
- 3G/4G/LTE Filter yes
- Active noise filter yes
- Telescopic antennas yes
- Rotatable/Tiltable yes
- Coaxial cable (meters/feet) 1 / 3.2

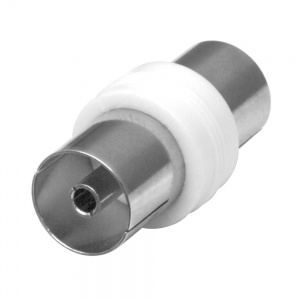

AV Link 766.299 Coupler Coaxial Female
Product Information:
A back-to-back coupler with coaxial sockets at both ends, to join 2 coaxial leads together. Ideal for TV and FM radio signals.
One For All SV9125 Amplified Indoor TV Aerial
Product Information:Enjoy perfect reception of digital television
Fully tiltable Aerial optimized for reception of HD digital TV signals. For best performance we recommend to use this ariel within a range of 15 km from your nearest transmitter.
High definition Television
This indoor Aerial is compatible with DVB-T/T2 programmes broadcast in HD format.
Fully adjustable for clear reception
For perfect reception of DVB-T television you can tilt or turn the fully adjustable loop and optimize the telescopic Aerials.
Interference free
This Aerial has a unique 3G/4G block-filter to block all 4G mobile phone signals, to ensure the best possible reception, now and in the future.
Product Specification:
- Antenna Type Indoor
- Digital Quality HD Ready
- Distance to Transmitter (km) 0 - 15 km
- DVB-T / DVB-T2
- Power indicator (LED)
- 3G/4G/LTE Filter
- Active noise filter
- Telescopic antennas
- Rotatable/Tiltable
- Coaxial cable (meters/feet) 1 / 3.2
Total Control SV1230 Amplified Indoor TV Aerial
Product features
- Maximum signal range: 9 miles
- 3G / 4G block-filter
- Receives analogue and digital signals
Receive both analogue and digital signals using the One For All Total Control SV1230 Amplified Indoor TV Aerial.
A built-in amplifier boosts the signal gain up to 40 dB, while the aerial can receive signal up to nine miles from your nearest transmitter.
Ideal for enjoying Freeview entertainment, the aerial includes 3G and 4G filters to minimise interference from mobile phone signals.
Type Indoor
Maximum signal range 9 miles
Frequency range UHF
Suitable for Freeview
Power Mains
FEATURES
Signal booster Yes
Cable length 1 m
GENERAL
Colour Black
Box contents - One For All Total Control SV1230 Amplified Indoor TV Aerial
- 1 m coaxial cable
- Power adapter
- User manual
Dimensions 174.9 x 92 x 26.9 mm (H x W x D)
Weight 126 g
Manufacturer’s guarantee 2 years
